Ports

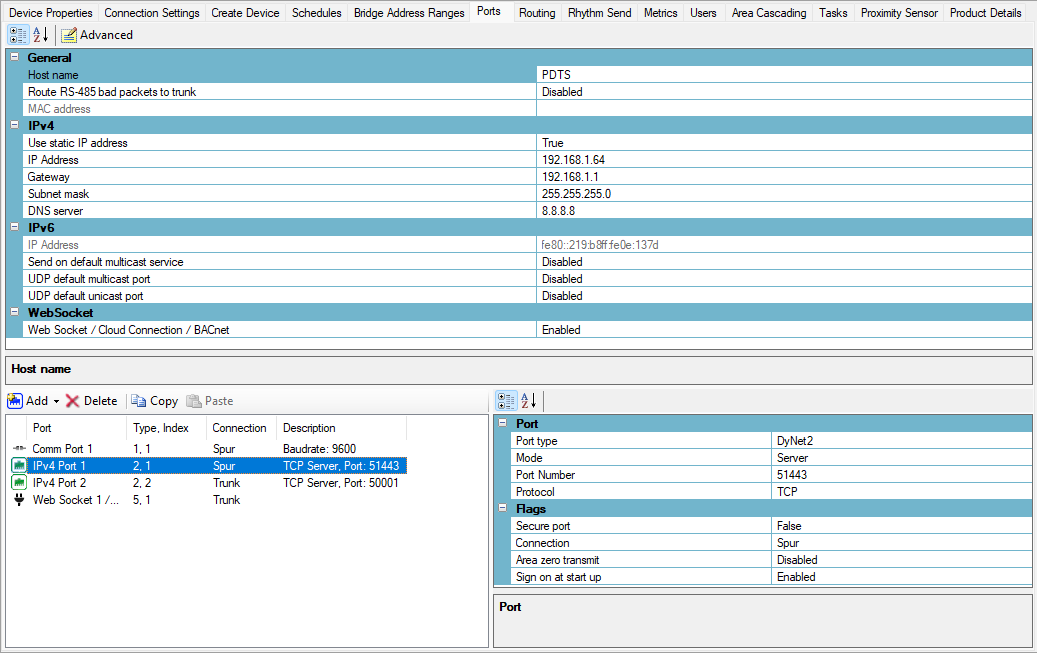

The PDTS supports serial and Ethernet ports. The Ports tab allows you to configure the serial port and the IPv4/IPv6 addresses and ports for connection to the system and to the commissioning PC.
The Port type can be set to DyNet1, DyNet2, Fidelio, or Text and Binary Integration to define the trunk-and-spur topology of the system, or to connect to a third-party device/system.
To ensure correct routing, we recommend adding ports via the  Bridge Configuration Wizard.
|
General
| Property | Description |
|---|---|
Host Name |
Name displayed on the router’s connected devices page. |
Keep alive retry time |
The time between sending TCP keep-alive messages if no other message has been sent or received. |
Route RS-485 bad packets to trunk |
If enabled, bad packets received on the RS-485 spur are routed to the trunk port inside a valid DyNet2 message. These can then be viewed in the Network Log to help diagnose network issues. |
MAC Address |
A hardware identification number that uniquely identifies each device on a network. |
IPv4
| Property | Description |
|---|---|
IPv4 ports |
Enabled or disabled |
Use static IP address |
True or False |
IP address |
The IP address of this device |
Gateway |
Router IPv4 address |
Subnet Mask |
A 32-bit number that divides an IPv4 address into network address and host address. A Subnet Mask is made by setting network bits to all "1"s and setting host bits to all "0"s. |
DNS server |
Domain name server IP address |
Alternative DNS server |
Alternative domain name server IP address |
IPv6
| Property | Description |
|---|---|
IPv6 user defined ports |
Enabled or disabled |
IP Address |
IPv6 address |
Gateway |
Router IPv6 address |
Subnet prefix length |
The prefix-length in IPv6 is the equivalent of the subnet mask in IPv4. Default value is 64. |
DNS server |
Domain name server IP address |
Alternative DNS server |
Alternative domain name server IP address |
Send on default multicast service |
Enabled or disabled |
UDP default multicast port |
Enabled or disabled |
UDP default unicast port |
Enabled or disabled |
Web Socket
| Property | Description |
|---|---|
Web Socket / Cloud Connection / BACnet |
(NOT CURRENTLY SUPPORTED) |
Port
| Property | Description |
|---|---|
Port type |
Port type can be set to DyNet1, DyNet2, Fidelio, or Text & Binary Integration. |
Mode |
Defines if the device is acting as the Client or Server. |
IP Address |
The IPv4 or IPv6 address of the Ethernet port. |
Port Number |
Dynalite devices generally use 51443 for secure connections and 50000/50001 for unsecured connections. |
Protocol |
TCP (default) or UDP |
Flags
| Property | Description |
|---|---|
Secure port |
If True, TCP port is secured with TLS encryption. |
Connection |
Specifies a Trunk or a Spur connection for address translation purposes. |
Area Zero Transmit |
Sending of all-areas messages may be enabled or disabled. |
Sign on at start up |
Sending a sign on message at startup may be enabled or disabled. |
